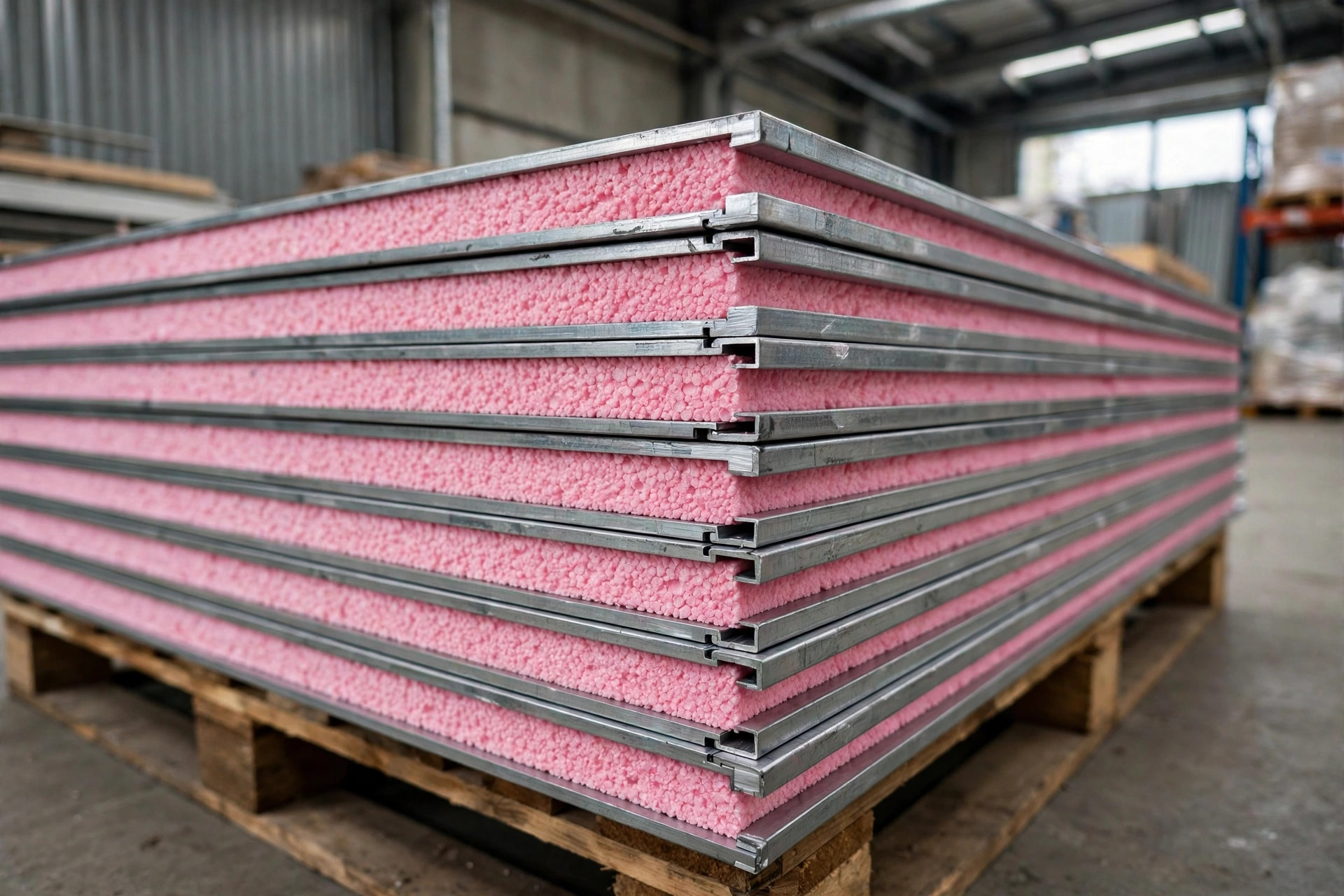

XPS panels — sandwich panels with an extruded polystyrene core — are the high-strength upgrade over standard EPS panels: roughly 50% better insulation per inch, near-zero water absorption, and compressive strength that handles heavy loads. As a top XPS panel manufacturer, Thermo Master produces XPS panels and boards from our factory on Katar Band Road, near Thokar Niaz Baig, Lahore, delivering across Pakistan since 2017.
Where EPS panels are the economical choice, XPS panels are the engineering choice — specified for cold rooms, damp environments, and roofs where performance can’t be compromised.
What XPS Panels Are and How They Work
An XPS sandwich panel bonds an extruded polystyrene core (28–40 kg/m³ density, 95% closed cells) between PPGI steel facings. Extrusion gives XPS its signature advantages: 0.025 W/mK thermal conductivity, 210–700 kPa compressive strength, and water absorption so low it’s effectively waterproof. Panels come 30–100 mm thick, 1 m wide, up to 12 m long, with tongue & groove joints.
Specifications
| Property | Specification |
|---|---|
| Core material | Extruded polystyrene (XPS) |
| Core density | 28–40 kg/m³ |
| Thermal conductivity | 0.025 W/mK |
| Compressive strength | 210–700 kPa |
| Steel facings | PPGI, 0.30–0.50 mm |
| Thickness | 30 / 40 / 50 / 60 / 75 / 100 mm |
| Effective width | 1000 mm |
| Length | Up to 12 m (custom cut) |
| Joint | Tongue & groove / shiplap |
Insulated Panels Comparison — EPS vs XPS vs PU
| Factor | EPS Panel | XPS Panel | PU (PUF) Panel |
|---|---|---|---|
| Insulation per inch | Good (R-4 per inch) | Better (R-5.9 per inch) | Best (R-6.5+ per inch) |
| Core strength | Moderate | High | High |
| Water resistance | Good | Excellent | Excellent |
| Fire performance | FR grade available | FR grade available | Best (PIR option) |
| Cost | Most economical | Mid-range | Premium |
| Best for | Prefab rooms, sheds, warehouses | Cold rooms, damp areas | Cold storage, clean rooms |
Applications in Pakistan
- Cold rooms & freezer rooms — walls, ceilings and floors
- Damp and coastal areas — Karachi’s humidity can’t touch XPS
- Walk-in chillers for dairy, meat and pharma
- Insulated warehouses for temperature-sensitive goods
- Roof insulation under screeds on concrete slabs
Price Table: XPS Panel Prices in Pakistan
| Thickness | Indicative Rate (per sq ft) | Best For |
|---|---|---|
| 30–40 mm | Rs. 450–600 | Wall cladding, partitions |
| 50–60 mm | Rs. 550–750 | Cold rooms, chillers |
| 75–100 mm | Quoted per project | Freezer rooms, heavy duty |
Rates are indicative ex-factory Lahore. Share your room size and target temperature on WhatsApp at 0333-4673836 for an exact project quote.
Why Choose Thermo Master — A Top XPS Manufacturer
- Direct manufacturer of XPS boards and panels — genuine 28–40 kg/m³ density
- EPS, XPS and PU panels from one supplier
- Custom lengths, multiple colors, FR grades
- 500+ completed projects since 2017
- Nationwide delivery: Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, Quetta and more
What Our Customers Say
Hamari service use ki? Google par apna review Urdu ya English me likhein — aapki raaye hamare liye qeemti hai.
FAQs
XPS or PU panels for cold storage? PU insulates slightly better per inch; XPS costs less and resists water equally well. For most cold rooms, 75–100 mm XPS performs excellently at lower cost.
Can XPS panels get wet? They absorb almost no water — ideal for wash-down areas and humid climates.
Do you cut panels to size? Yes — custom lengths up to 12 m and cut-to-size service for contractors.
Get a Free Quote
Send your project details on WhatsApp at 0333-4673836 or email info@thermomaster.pk. Full range at https://thermomaster.pk.
